SEEPEX Pumps Replacement Parts
SEEPEX was found in 1972 and it is a worldwide leading specialist in pump technology. It has been part of the Ingersoll Rand Group Since 2021. SEEPEX progressive cavity pumps are used in the places where low to highly viscous, aggressive or abrasive media must be conveyed at low pulsation rates. SEEPEX PC pumps are popular in the market as well as NETZSCH PC pumps , NEMO Pumps and MONO PC pumps.
SEEPEX progressive cavity pumps are very popular and used in many countries. During the pumping work, the rotor, stator and some other components would be worn naturally or damaged due to some problems. Then the users need to replace the original spare parts or need some good quality replacement parts instead.
kynspump Intl. can supply such high-quality replacement parts for SEEPEX progressing cavity pumps. We can provide the replacement spare parts for numerous models, 100% compatible and with fast delivery in 2 days. The generic pump parts (Both for standard PC pumps and SCT Pumps) we supplied for SEEPEX pumps can highly match the original pump parts and have equivalent service life.

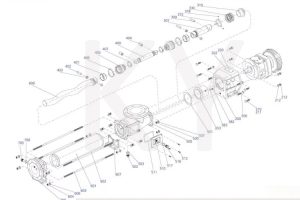

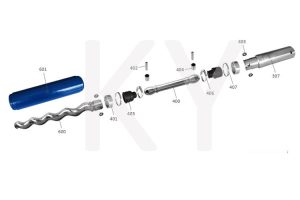

SEEPEX Spare Parts–Replacement Parts Generally, we supply the whole set of replaceable accessories for SEEPEX processing cavity pumps. The replacement components include the Helical Rotor 600, Stator 601, Drive Shaft 307, Coupling Rod 400, Universal Joint Set and Mechanical Seal/Packing Seal. They are normally available in separate parts or as a whole set. Should you be interested in any SEEPEX rotor, stator or other replacement spare parts, don’t hesitate to WhatsApp Us(Whatsapp:+86 153 1226 1613)! We will respond to you within 1 hour.

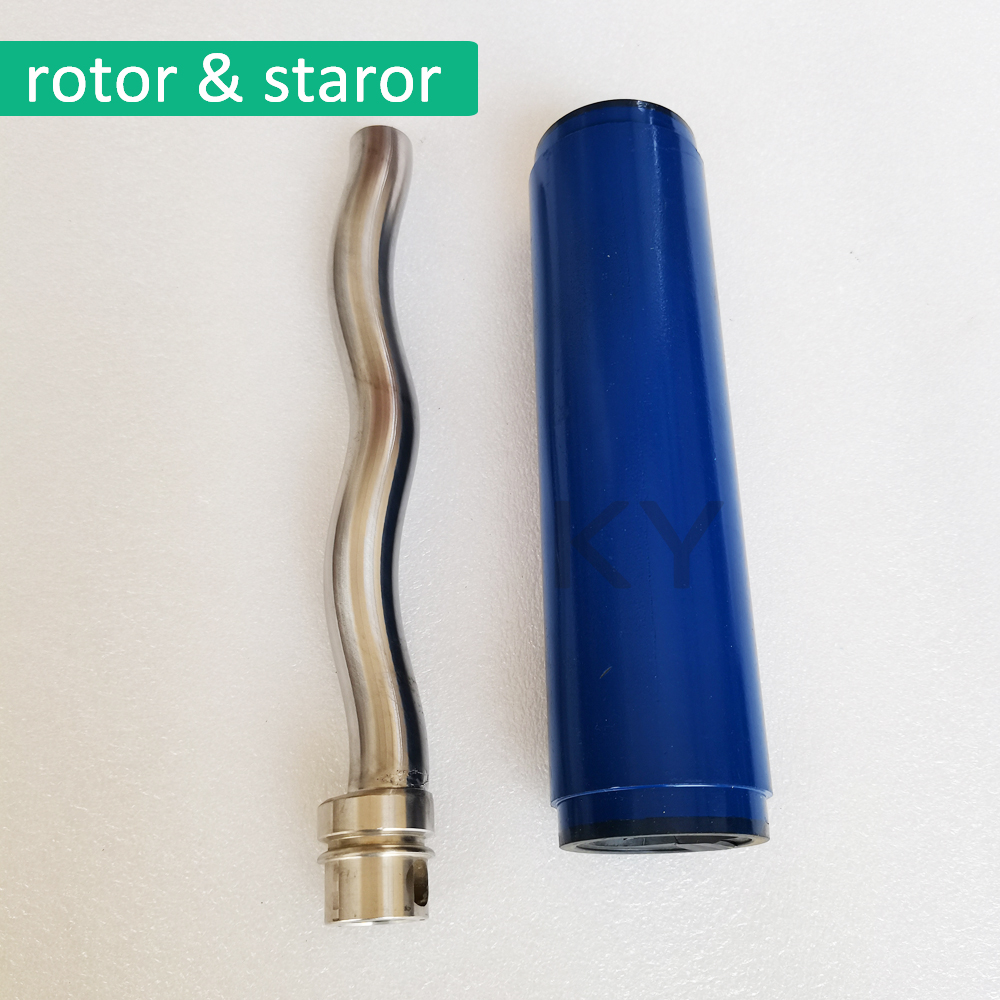

The stator materials is rubber. Because it needs to form a closed meshing cavity with the rotor, it is an interference fit with the rotor. When the rotor (main shaft) rotates and causes continuous friction, it will wear naturally.
The Progressive cavity pump rotor (also known as the main shaft) is mostly made of stainless steel, and can be selectively plated with chrome;
Due to its meshing relationship with the characteristic geometry of the stator, in addition to natural wear, it is also whether the conveyed medium contains solid particles and corrosive.
SEEPEX Stator 601 Material Shell Optional: Steel/Stainless Steel
Lining Optional: NBR/EPDM/FKM/VITON/HNBR rubber
SEEPEX Rotor 600 Material Optional: 2cr13/SS304/SS316L/DSS/Tool stainless Steel ,
Plating Optional: Cr Plating/Tungsten Carbide
SEEPEX Drive Shaft 307 Material Optional: SS304/SS316L/DSS/Tool Steel
Shaft Type: Bolt Coupling/Cross-Coupling
SEEPEX Coupling Rod 400 Material Optional: SS304/SS316L/DSS/Tool stainless Steel
Plating Optional: Cr Plating/Tungsten Carbide

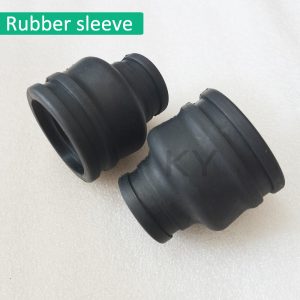

SEEPEX Universal Joint assembly Include Sealing Covers, Retaining Sleeves, Coupling Rod Pins, Snap Rings, O-rings, etc.

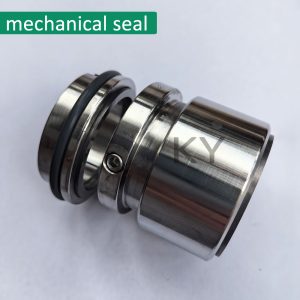

Mechanical Seal/Packing Seal Mechanical: Long life, good anti-viberation Packing seal: low cost, easy to install&replace
SEEPEX Replacement Parts- Models Availablen kynspump Intl. can supply the whole set of replaceable parts for SEEPEX progressing cavity pumps. The universal replacement parts contain the rotor, stator, drive shaft, coupling rod, universal joint set and mechanical seal/packing seal, etc. The universal parts are normally available in separate parts or a whole set. Please don’t hesitate to let us know the pump models and position number of the replacement spares when you are interested in any cavity pump parts. For example: “Hi, I am interested in part number 601 and 600 for SEEPEX pump BN5-6L.”
SEEPEX Model List – Replacement Parts

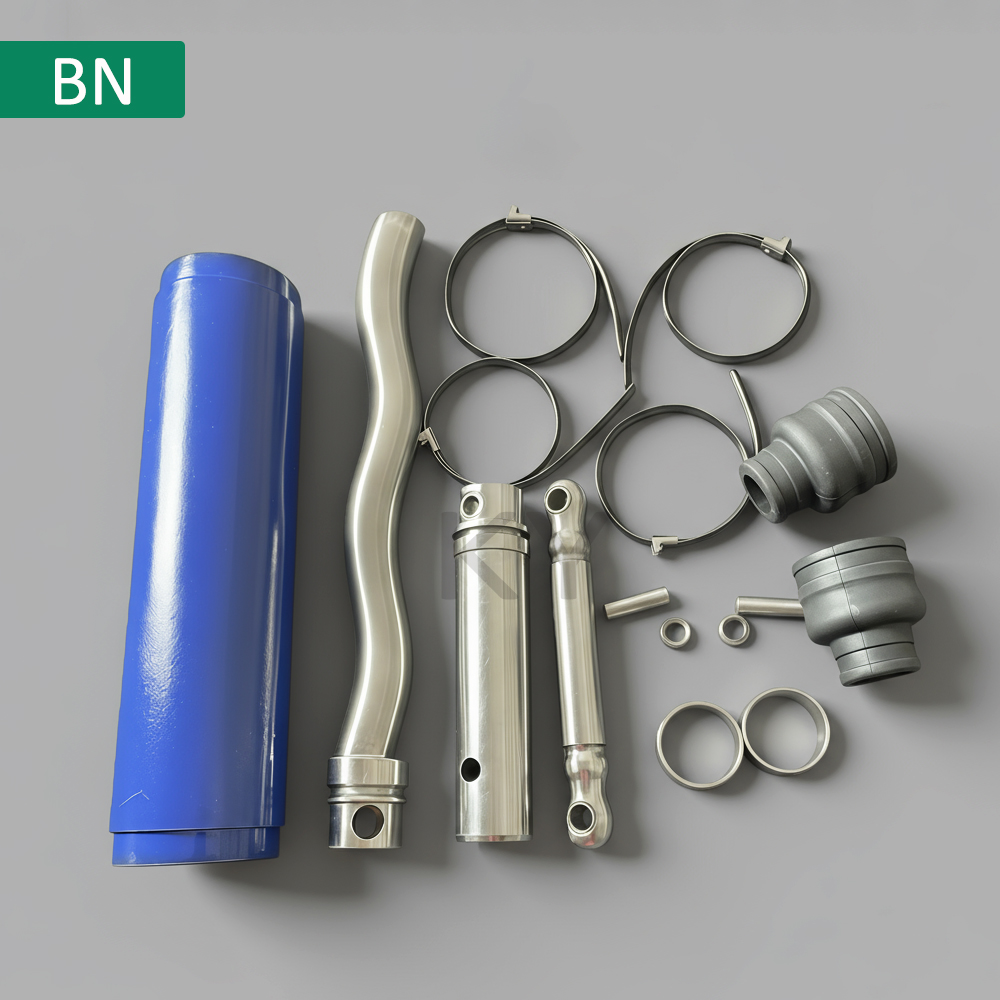

BN Range & SCT Range
Stage 1:BN025-6L BN1-6L , BN2-6L , BN5-6L, BN10-6L, BN17-6L , BN26-6L , BN35-6L, BN52-6L, BN70-6L, BN100-6L, BN130-6L,
Stage 2:BN05-12,BN1-12,BN2-12,BN5-12,BN10-12,BN17-12,BN26-12,BN35-12,BN52-12,BN70-12,BN100-12,BN130-12,
Stage 3:BN1-18 BN5-18 BN70-18 BN100-18 BN130-18
Stage 4:BN025-24 BN05-24 BN1-24 BN2-24 BN5-24 BN10-24 BN17-24 BN26-24 BN35-24 BN52-24 BN70-24 BN130-24
Double Head:BN 05-6lt BN15-6Lt,BN30-6lt,BN40-6lt,BN55-6lt,BN75-6lt,BN110-6lt,BN8-12T,BN15-12T,BN30-12T,BN55-12T,BN110- 12T,BN200-12T,BN300-12T

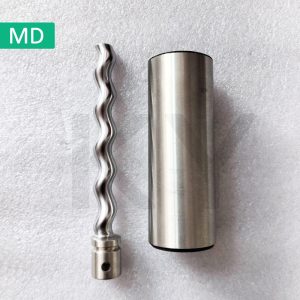

OTHER:MD006-12,MD025-6,MD012-12
